REBUILD KIT for standard Stethoscopes

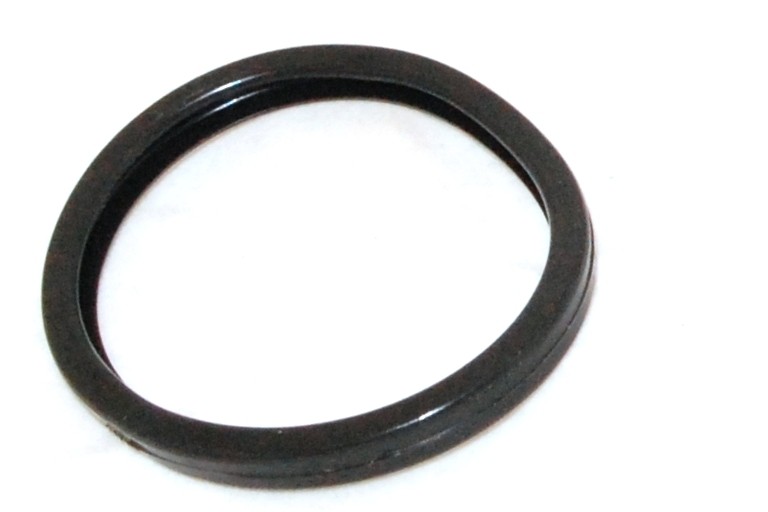

Go Green. Don't throw away your trusty old stethoscope. REBUILD IT. Replace the worn out tube assembly, rims, and Diaphragms; and the device should be as good as new.

This tube sets will fit most standard stethoscopes. The tube and diaphragms are made with high quality materials. The ear piece is ergonomically designed at a 15 degree angle.

Purchase

Rebuild Kits - Summary

	Cardiac Quality Kits			G.P. Style Kits
	for Dual Head with 2 diaphragms	for Dual Head 1 diaphragm + Bell	for Single Head 1 diaphragm	Adult Dual Head	Pediatric Size Dual Head
finished look
Model	KL-171 Specs	KL-171B < Specs	KL-172 Specs	KL-173 Specs	KL-173P Specs
Diaphragms	45mm + 35mm	45mm	48mm	45mm	35mm
Bell Sleeve	none	35mm	none	35mm	25mm
Tubing	thick dual core tube with yoke			thin single core tube
Purchase	Purchase	Purchase	Purchase	Purchase	Purchase

Details

The G.P. kit has a thinner tube with a smaller hole and a plain y shape

The Cardio kit has a thicker tube with a bigger hole and a double y yoke.

Please compare your old stethoscope to these details.

Almost all stethoscopes on the market fall into one of these two sizes.

G.P. Style

single tube

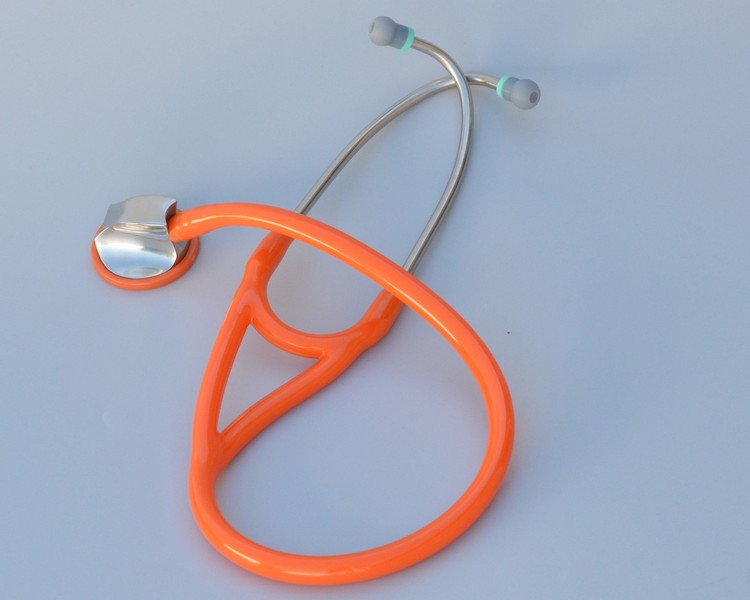

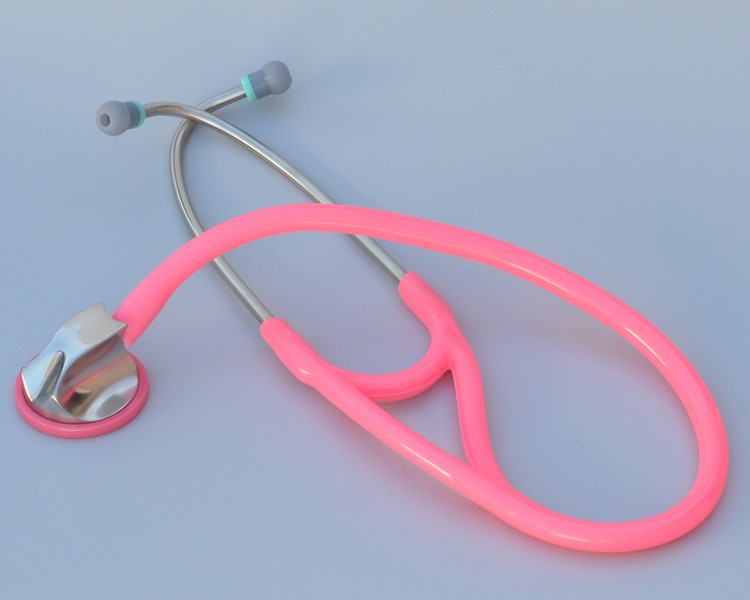

Cardiac finished look

dual tube

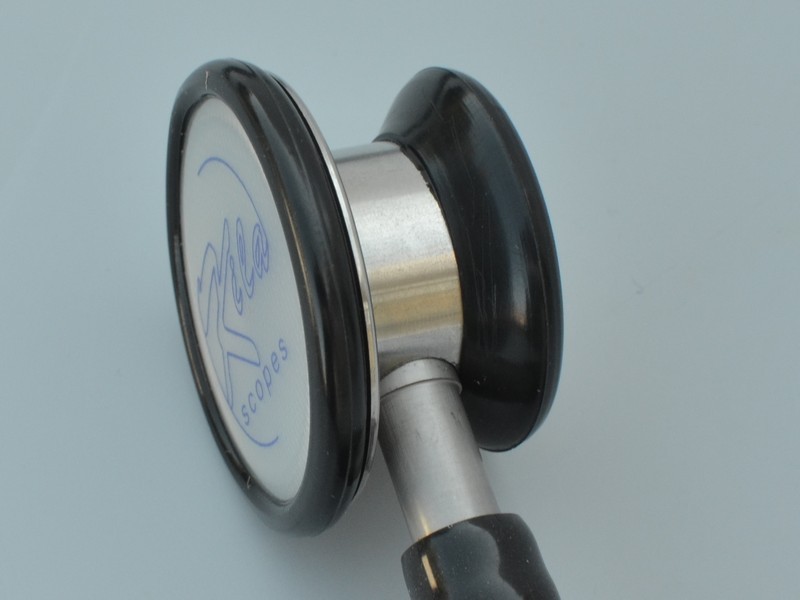

diaphgram

Single finised look

2 Diaphragms CARDIAC Thicker dual core tube

Model KL-171- Rebuild kit for Cardiac Quality Class Stethoscopes with 2 Diphragms
Diaphragms Diameter	45 mm, 35mm	1.75"
Tube Length (tip to tip)	700 mm	27 inches
Tube Color	black, blue, green, orange, pink
Tube Hole Aperture	7 mm	0.25"
Tube outside diameter	13 mm	0.5"

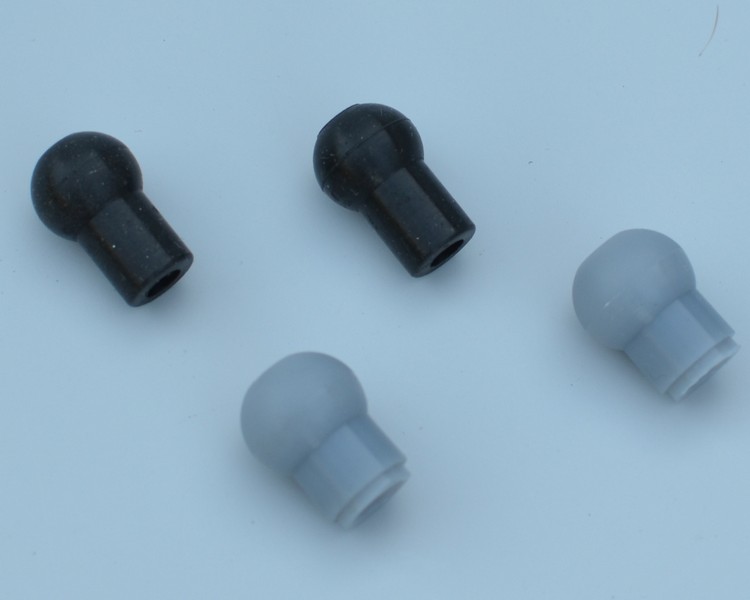

Ear piece	Soft sealing ear tips Dual-leaf spring Fixed at 15° angle

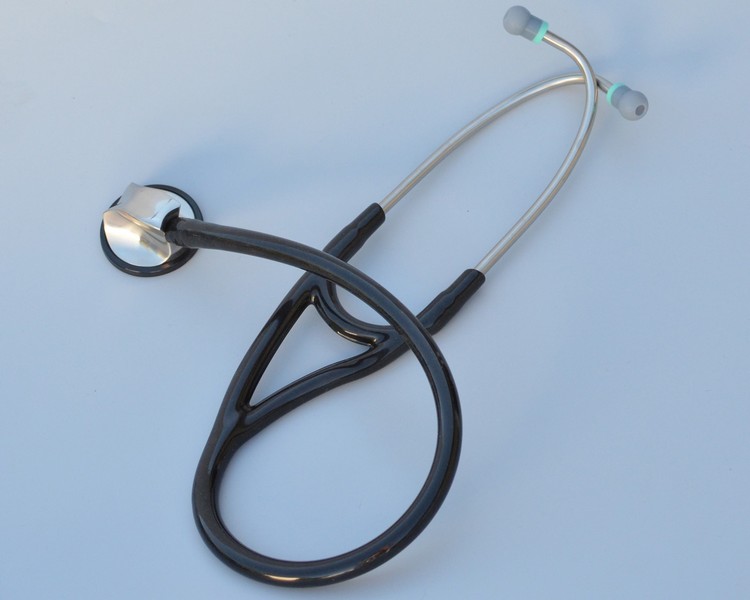

Finished look (head not included)		Purchase

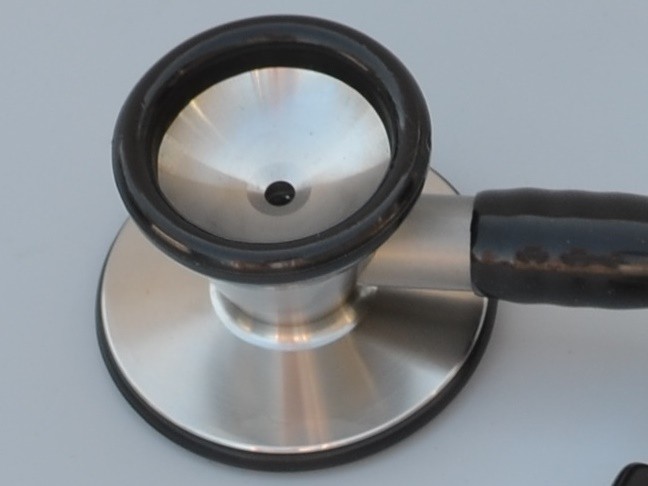

BELL Dual head CARDIAC Thicker dual core tube

Model KL-171B- Rebuild kit for Cardiac Quality Stethoscopes with 1 diaphragm and 1 Bell
Diaphragms Diameter	45 mm, 35mm	1.75"
Tube Length (tip to tip)	700 mm	27 inches
Tube Color	black, blue, green, orange, pink
Tube Hole Aperture	7 mm	0.25"
Tube outside diameter	13 mm	0.5"
Ear piece	Soft sealing ear tips Dual-leaf spring Fixed at 15° angle

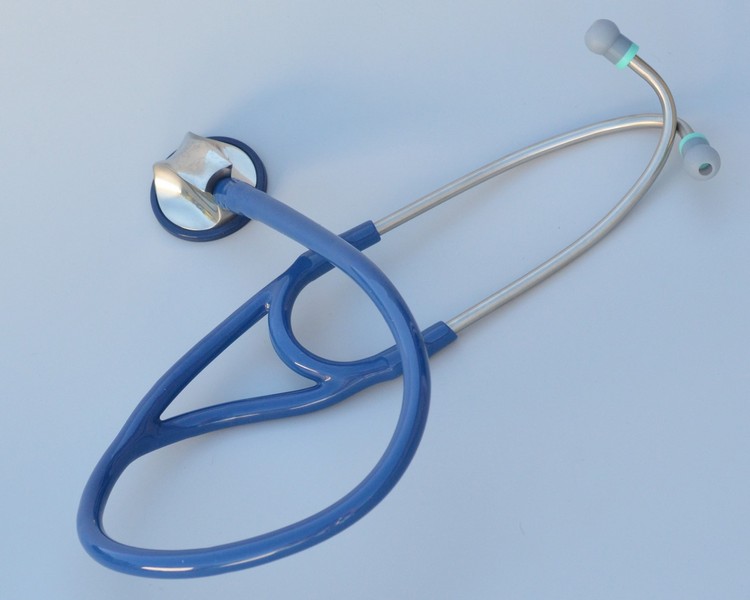

Finished look (head not included)		Purchase

Single Head CARDIAC Thicker dual core tube

Model KL-172- Rebuild kit for Cardiac Class Stethoscopes Single Head Stethoscopes with 1 larger diaphragm
Diaphragms Diameter	45 mm, 35mm	1.75"
Tube Length (tip to tip)	700 mm	27 inches
Tube Color	black, blue, green, orange, pink
Tube Hole Aperture	7 mm	0.25"
Tube outside diameter	13 mm	0.5"
Ear piece	Soft sealing ear tips Dual-leaf spring Fixed at 15° angle

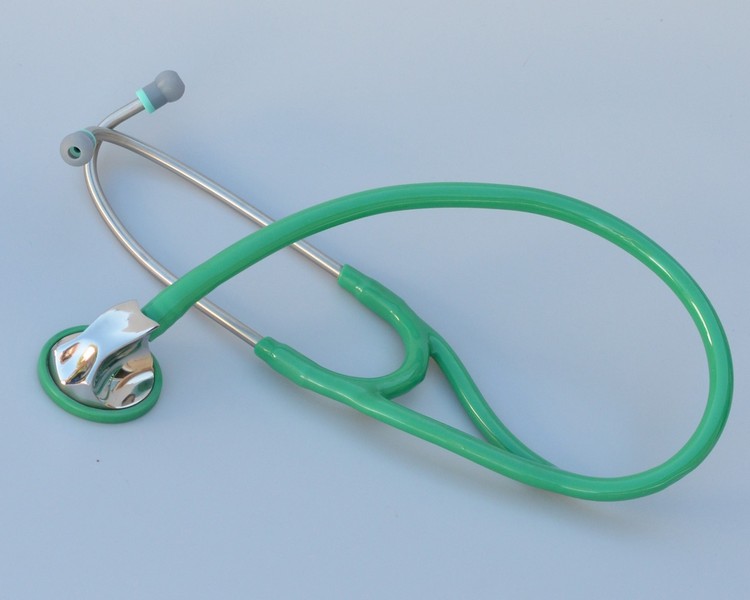

Finished look (head not included)		Purchase

G.P. Adult Diagnosis TYPE Thinner single core tube

Model KL-173- Rebuild kit for SE Stethoscopes Adult Size
Diaphragms Diameter	45 mm	1.75"
Bell Sleeve Diameter	35 mm	1.375"
Tube Length (tip to tip)	700 mm	27.5 inches
Tube Color	black, blue, green, orange, pink
Tube Hole Aperture	5 mm	0.20"
Tube outside diameter	10 mm	0.4"
Ear piece	Soft sealing ear tips Dual-leaf spring Fixed at 15° angle

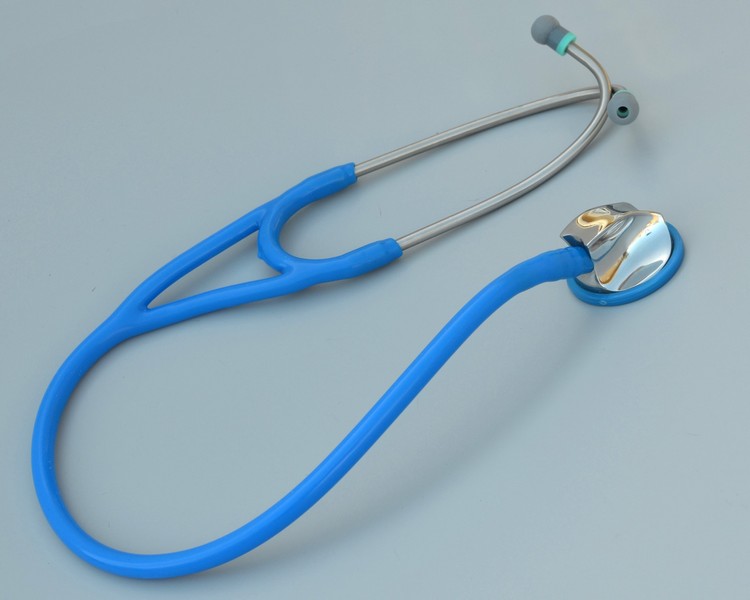

Finished look (head not included)		Purchase

Pediatric SE TYPE Thinner single core tube

Model KL-173B- Rebuild kit for Pediatric Size Stethoscopes
Diaphragms Diameter	35 mm	1.75"
Bell Sleeve Diameter	25 mm	1.375"
Tube Length (tip to tip)	700 mm	27.5 inches
Tube Color	black, blue, green, orange, pink
Tube Hole Aperture	5 mm	0.20"
Tube outside diameter	10 mm	0.4"
Ear piece	Soft sealing ear tips Dual-leaf spring Fixed at 15° angle
Finished look (head not included)		Purchase
